Compact substations
in stainless steel and hybrid construction
Due to the modular design of the compact substation, we can respond to your needs - according to your requirements and conditions on site.
- Modular construction
- Efficient room climatic properties
- Climatically stable under year-round conditions
- Easy to maintain structure
- Low transport weight and small transport volume reduce transport costs
- Delivery incl. electrotechnical equipment as factory-ready station according to IEC 62271-202 or optionally available as kit
- Protection class IP34D according to IEC 60529 optionally IP44D
Basic types and their areas of application
Stainless steel structure
without basement
| Range of application |
|---|
| Grid station for use in industrial and temporary areas |
| Use in rocky ground and high groundwater level |
| Empty weight type 1000kVA approx. 1.400 kg |
| Installation above ground |
| Subsoil Concrete foundation or slab, sand, gravel or ballast bed |
Hybrid station
Structure Stainless steel
Basement Concrete
| Range of application |
|---|
| Network station in the local network and industrial area |
| Use with normal load-bearing ground |
| Empty weight type 1000kVA approx. 5.000 kg |
| Buried cable basement |
| subsoil sand, gravel or ballast bed |
Body Stainless steel
Basement Stainless steel
| Range of application |
|---|
| Network station in the local network and industrial area |
| Use with normal load-bearing ground |
| Empty weight type 1000kVA approx. 1.400 kg |
| Buried cable basement |
| subsoil sand, gravel or ballast bed |

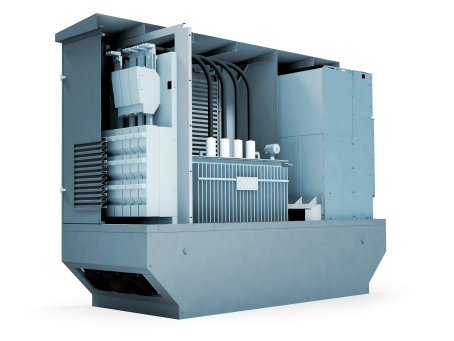

Transformer station 630kVA
For safe power distribution of low power

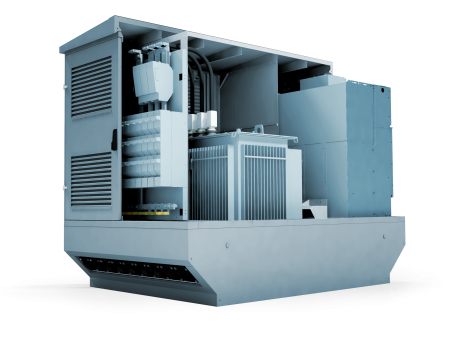

Transformer station 1000kVA
For the safe power distribution of high power
Product key explanation
| Type designation scheme | |
|---|---|
| MCS <width> <length> - <height> <design> | |
| MCS | Metal Compact Substation |
| <width> | Short side of base body (outside dimension without projections) rounded to two-digit decimeters. |
| <length> | Long side of base body (outside dimension without protrusions) rounded to two-digit decimeters. |
| <height> | Height of the base body (outside dimension to highest point including roof) rounded to two-digit decimeters. |
| <Frame> | F = Frame (basement for above ground installation) H = Hybrid station (steel upper part with basement part made of concrete ) K = Skid station (station mounted on separate skid) S = Steel (steel upper part with basement made of stainless steel) |
